Tuesday, July 02, 2013

Peoplesoft on Windows 2012 : the OS

For once, I’ll spend some times on Windows server.
Most of the time, I work on Linux or Unix system, but that’s also good to see how other are going to run out of the box, at least to be able to compare and speak about a system with a minimum of knowledge.

And whilst investigating on Windows, better to go for the very latest server release.
According to the certification matrix on My Oracle Support, Peopletools 8.53 is planned to be certified on Windows 2012 (no date). You could track the note Oracle Plans New Microsoft Windows Certifications with PeopleSoft [ID 1515376.1] for more information: “[…]Microsoft’s Windows Server 2012 will be certified with PeopleSoft’s server components, including the database, web and application servers[…]”
Unfortunately, the same is not true for the Oracle database. Nothing is planned yet for Windows 2012. Maybe for the upcoming 11.2.0.4 (scheduled for the Q4-2013, find out more Release Schedule of Current Database Releases [ID 742060.1]) ?
Anyway, not certified has never meant that won’t work. So why not have a try and see ?

I’ll build a brand new server Windows 2012 hosted on VMWare ESXi, with Peoplesoft (HCM9.2, Peopletools 8.53) and Oracle 11.2.0.3 database.
Note that since Windows 2008R2, it’s only 64bit OS. Windows 2012 is available on TechNet for free download with a 180-days trial version (by default).

Let’s start with the VMWare configuration, with the bare-minimum hardware required :
PTOOLS853_W2012_001

PTOOLS853_W2012_013

The first given hard disk being for OS hosting, I added two more hard disks, one for the applications (Oracle software, Peoplesoft, Weblogic…), one for the database.
PTOOLS853_W2012_021

Then configure the CD-ROM to boot on an ISO file:
PTOOLS853_W2012_023

And boot:
PTOOLS853_W2012_025

Then it’s coming time for the installation:
 PTOOLS853_W2012_026
 PTOOLS853_W2012_027

Choose the Edition you want to work on, important note, from Windows 2012 onwards, there won’t be anymore Enterprise Edition. Only two Editions are remaining, Standard and DataCenter (note, at the time I’m writing this blog entry, you may find out Windows 2012 R2 preview).
PTOOLS853_W2012_028

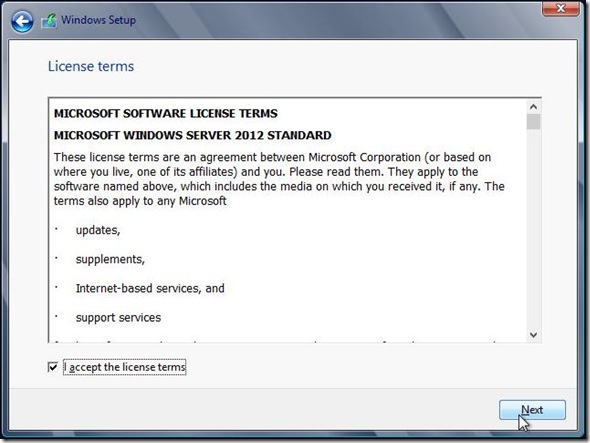

Accept the license agreement:
PTOOLS853_W2012_029

And go for a fresh installation from scratch:
PTOOLS853_W2012_030

Format and choose the disk you want to install the OS on:
PTOOLS853_W2012_031
PTOOLS853_W2012_032
PTOOLS853_W2012_033

PTOOLS853_W2012_034

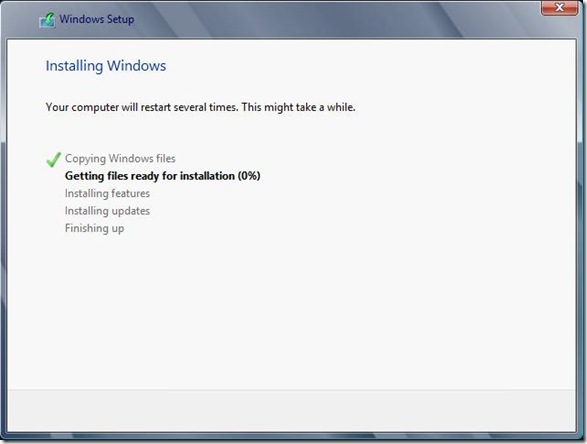

It took only few minutes to get it installed:
 PTOOLS853_W2012_035

Done !
PTOOLS853_W2012_036

Amazingly fast, do not want to remember these old days when it took ages to install a Windows OS…

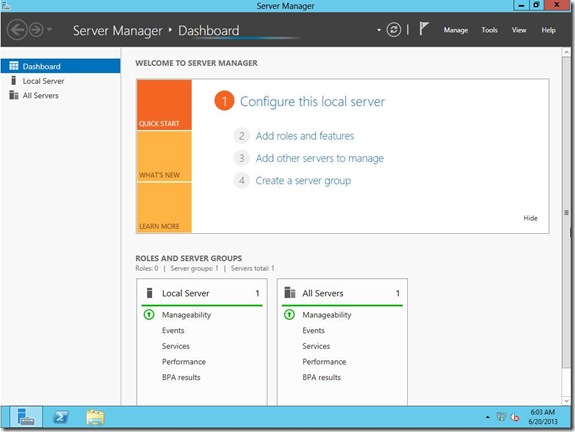

And once connected, the GUI is a lot disturbing, needed a lot of time to get use to it:
PTOOLS853_W2012_038

I won’t go through the all Windows 2012 specificities and details, except the ones we will need to get a working server. If you want more information about Windows 2012, there’s literature.

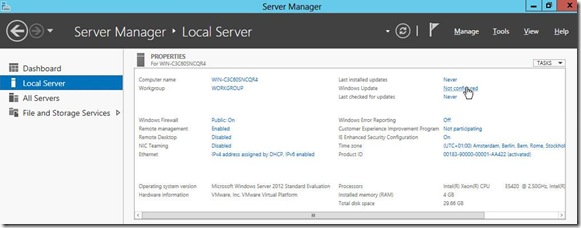

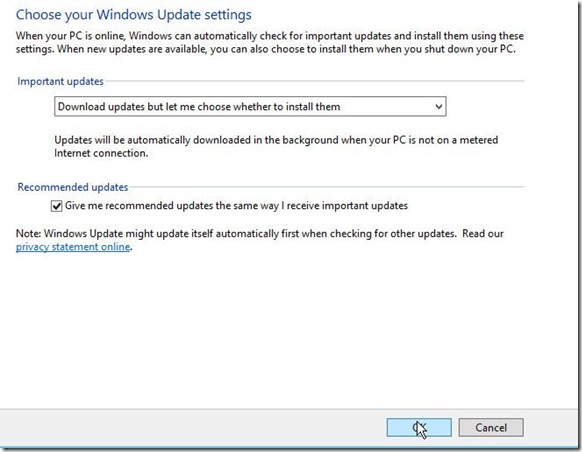

For the sake, I change the Windows update to be manual (by default it is set to be automatically applied, how can it be on a server?):
PTOOLS853_W2012_039
PTOOLS853_W2012_040

The computer name has to be changed (it’s a server) as well as the IP to be a fix one (no DHCP on a server):
PTOOLS853_W2012_045
PTOOLS853_W2012_047

Bring the 2 left disks (non-OS ones) online and format them both:
 PTOOLS853_W2012_049
PTOOLS853_W2012_051

Remove the “hide” properties from the explorer, we are the Admin on the server and most likely want to see everything.
PTOOLS853_W2012_053

Then modify the hosts file and add the IP hostname of that new server:
PTOOLS853_W2012_056
PTOOLS853_W2012_057

Do not forget to install the VMWare tools if you are working on bare-metal hypervisor such as ESXi.
Reboot the server to take all the change in account.

If I was going through the steps above, that’s because I had really hard time to find out where was what. Where was what I used to use on Windows 2008R2 for instance.
No more “Start” menu… For shutting down the server, restart or disconnect, I dig a lot to find out that was under “Local Server”, “Tasks” then … “Shutdown the local server”.
One more surprise, if you actually drag your mouse top right, or bottom right of the screen, it will popup a kind of menu with “Search”, “Start” and “Settings” with a BIG clock in the middle of the screen.
PTOOLS853_W2012_SRVC_001

Search” can be considered as useful, you will retrieve here almost all of your applications:
PTOOLS853_W2012_SRVC_003

You may want to use the search feature, not sure about accuracy here though. It worked here for pside (AppDesigner), but not for psdmt (DataMover), no idea why:
PTOOLS853_W2012_SRVC_002
To get out of that screen, press “Escape”… intuitive you said ?

To my point of view, the “Start” is useless (you can find all from the above “Search”) and looks terrible (you can see my background desktop):
 PTOOLS853_W2012_SRVC_005

And about the “Settings”… well, not better. Nothing much to do out there.
PTOOLS853_W2012_SRVC_007

I won’t comment that Windows version. If it’s better or not than previous, but definitely different. At the least.
You have to spend time just to find how to manage it now, and where are your programs you want to run.

Anyway, that was just the very first step in order to get Peoplesoft on Windows 2012.

Enjoy Windows 2012 (in 2013),

Nicolas.
