Saturday, September 05, 2009

Oracle 11.2.0.1 install on OEL5.3 64 bits

It is a quite interesting release, a lot of changes in the installation screenshots, especially for those who followed the Oracle install for a long time.
Here, we go.

Firstly, be sure the following RPMs are installed on your OS :
binutils-2.17.50.0.6
compat-libstdc++-33-3.2.3
compat-libstdc++-33-3.2.3 (32 bit)
elfutils-libelf-0.125
elfutils-libelf-devel-0.125
gcc-4.1.2
gcc-c++-4.1.2
glibc-2.5-24
glibc-2.5-24 (32 bit)
glibc-common-2.5
glibc-devel-2.5
glibc-devel-2.5 (32 bit)
glibc-headers-2.5
ksh-20060214
libaio-0.3.106
libaio-0.3.106 (32 bit)
libaio-devel-0.3.106
libaio-devel-0.3.106 (32 bit)
libgcc-4.1.2
libgcc-4.1.2 (32 bit)
libstdc++-4.1.2
libstdc++-4.1.2 (32 bit)
libstdc++-devel 4.1.2
make-3.81
sysstat-7.0.2
unixODBC-2.2.11
unixODBC-2.2.11 (32 bit)
unixODBC-devel-2.2.11
unixODBC-devel-2.2.11 (32 bit)

Note the 32 bits packages requirements, it was a surprise for me.
Some of them was not installed on my server, so, need to be installed :
[root@orion2:/nfs/software/LinuxCD/OracleEntrepriseLinux/OEL5x86/OEL5.2x86/RPMs/cd2]# ls unix*
unixODBC-2.2.11-7.1.i386.rpm
[root@orion2:/nfs/software/LinuxCD/OracleEntrepriseLinux/OEL5x86/OEL5.2x86/RPMs/cd2]# rpm -Uvh unixODBC-2.2.11-7.1.i386.rpm
warning: unixODBC-2.2.11-7.1.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing... ########################################### [100%]
1:unixODBC ########################################### [100%]
[root@orion2:/nfs/software/LinuxCD/OracleEntrepriseLinux/OEL5x86/OEL5.2x86/RPMs/cd2]# cd ../cd3
[root@orion2:/nfs/software/LinuxCD/OracleEntrepriseLinux/OEL5x86/OEL5.2x86/RPMs/cd3]# ls unix*
unixODBC-devel-2.2.11-7.1.i386.rpm unixODBC-kde-2.2.11-7.1.i386.rpm
[root@orion2:/nfs/software/LinuxCD/OracleEntrepriseLinux/OEL5x86/OEL5.2x86/RPMs/cd3]# rpm -Uvh unixODBC-devel-2.2.11-7.1.i386.rpm
warning: unixODBC-devel-2.2.11-7.1.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing... ########################################### [100%]
1:unixODBC-devel ########################################### [100%]
[root@orion2:/nfs/software/LinuxCD/OracleEntrepriseLinux/OEL5x86/OEL5.2x86/RPMs/cd3]# ls libaio*
libaio-devel-0.3.106-3.2.i386.rpm
[root@orion2:/nfs/software/LinuxCD/OracleEntrepriseLinux/OEL5x86/OEL5.2x86/RPMs/cd3]# rpm -Uvh libaio-devel-0.3.106-3.2.i386.rpm
warning: libaio-devel-0.3.106-3.2.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing... ########################################### [100%]
1:libaio-devel ########################################### [100%]
[root@orion2:/nfs/software/LinuxCD/OracleEntrepriseLinux/OEL5x86/OEL5.2x86/RPMs/cd3]#


Moreover, modifications are required into /etc/sysctl.conf :
#fs.file-max = 6553600
#change for 11gR2
fs.file-max = 6815744
...
#net.core.wmem_max = 262144
#change for 11gR2
net.core.wmem_max = 1048586
...
#net.ipv4.ip_local_port_range = 1024 65000
#change for 11gR2
net.ipv4.ip_local_port_range = 9000 65500


The run
/sbin/sysctl -p
or reboot your system.

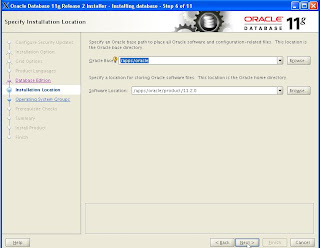

Finally, within your prefered XWindow client :

















Enjoy the new version,

Nicolas.

2 comments:

Amelia said...

Nice post. I wanted to install but when I checked for the necessary RPMs that you have listed above I found that some are missing and few of them are not 32 bit. Please share from where can I get the missing RPMs. I have understood the remaining steps also and even bookmarked this post also.
sap testing

Gratian Dicu said...

@Amelia
I don't want to step over Gasparotto but i just installed Oracle based on Gasparotto's blog post (which is great) and i can tell you that if you are installing on an OEL5 (mine is OEL5u5) you could get the public repository from oracle (just search for oracle public yum), configure the repository like it sais on the page and than hit as root yum install oracle-validated. This wil get the vast majority of the prerequisits. I also needed to install 2 of them but for those i just used yum install
Hope it works for you.
